GlusterFS分布式存储集群之使用

Glusterfs逻辑卷创建与使用

volume是brick的组合,并且大部分glusterfs文件系统的操作都在volume上。

glusterfs支持4种基本卷,并可以根据需求对4种基本卷进行组合形成多种扩展卷(得益于glusterfs的模块化堆栈架构设计)。

以下主要展示各类型逻辑卷的功能性,未对性能做测试验证。

分布式卷

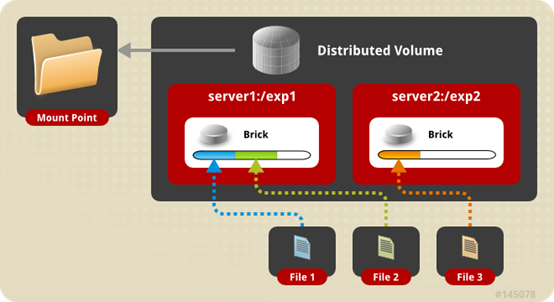

分布式卷(Distributed Glusterfs Volume,又称DHT),glusterfs创建volume不指定卷类型时,默认即分布式卷,特点如下:

  1. 根据hash算法,将多个文件分布到卷中的多个brick server上,类似(不是)raid0,但文件无分片;
  2. 方便扩展空间,但无冗余保护;
  3. 由于使用本地文件系统进行存储(brick server 的本地文件系统),存取效率不高;
  4. 受限于本地文件系统对单文件容量的限制,支持超大型文件系统有问题。


创建存储目录(optional)

1
2
3
# 在brick server节点创建存储目录,即brick所在;
# 以glusterfs01节点为例,注意各brick server挂载磁盘的目录名的不同
[root@glusterfs01 ~]# mkdir -p /brick1/dis_volume

创建分布式卷

1
2
3
4
# 命令:gluster volume create NEW-VOLNAME [transport [tcp | rdma | tcp,rdma]] NEW-BRICK...
# 以上命令在任意server节点操作均可,以glusterfs01节点为例;
# 演示分布式卷的创建,两个server节点即可,创建名为”distributed-volume”的逻辑卷
[root@glusterfs01 ~]# gluster volume create distributed-volume glusterfs01:/brick1/dis_volume glusterfs02:/brick2/dis_volume


卷信息/状态

1
2
3
4
5

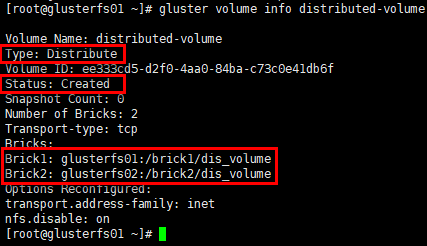

# 命令”gluster volume list”可列出已创建的卷;
# 命令”gluster volume info”可不指定具体的卷,即列出所有卷信息;
# info中给出除卷名外,还有卷类型,状态,brick组成等信息;
# 其中状态为“Created”,需要通过命令启动后才可被挂载使用,在创建成功后的提示信息中有提到”please start the volume to access data”
[root@glusterfs01 ~]# gluster volume info distributed-volume


1
2
3

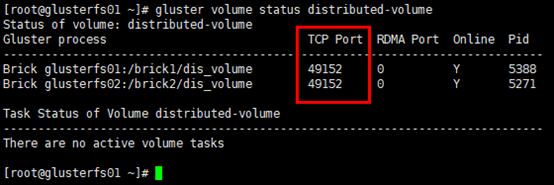

# 查看卷状态;
# 展示卷中每个brick的状态,以及每个brick服务的监听端口
[root@glusterfs01 ~]# gluster volume status distributed-volume


启动卷

1
[root@glusterfs01 ~]# gluster volume start distributed-volume


1
2

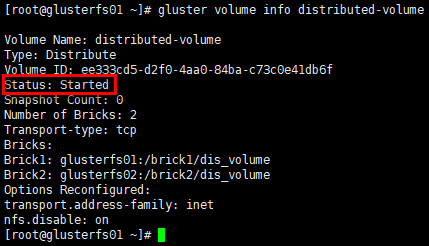

# 再次查看卷信息,状态变为"Started"
[root@glusterfs01 ~]# gluster volume info distributed-volume


client挂载

1
2
3
4
5
6
# 在客户端创建挂载目录
[root@glusterfs-client ~]# mkdir /mnt/distributed

# 挂载时,可使用任意1台已加入可信存储池并已创建对应卷类型的server节点;
# brick以”SERVER:EXPORT”的形式标识
[root@glusterfs-client ~]# mount.glusterfs 172.30.200.51:distributed-volume /mnt/distributed/

查看挂载情况

1
2

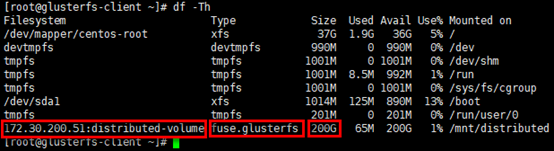

# 通过“df -Th”命令可查看被挂载的volume,被挂载的文件系统,已经挂载卷的容量是2个brick容量之和
[root@glusterfs-client ~]# df -Th


查看brick的监听端口

1
2
# server节点上每启动1个brick,即启动1个brick服务,具备相应的服务监听端口,起始端口号是tcp49152
[root@glusterfs01 ~]# netstat -tunlp | grep gluster


1
2

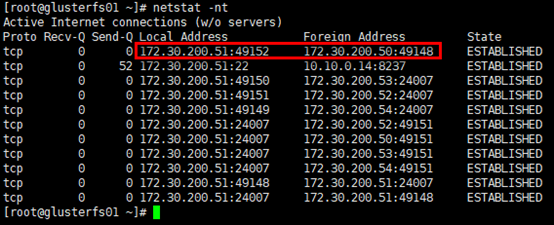

# 另外,client连接的即brick服务的监听端口
[root@glusterfs01 ~]# netstat -nt


存储测试

1
2
3
4
5
6
# 在client的挂载目录下创建若干文件
[root@glusterfs-client ~]# cd /mnt/distributed/
[root@glusterfs-client distributed]# touch distributed{1..4}.txt

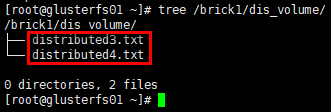

# glusterfs01节点
[root@glusterfs01 ~]# tree /brick1/dis_volume/


1
2

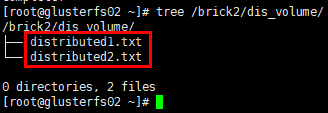

# glusterfs02节点
[root@glusterfs02 ~]# tree /brick2/dis_volume/


结论:分布式卷将多个文件分布存储在多个brick server,但并无副本。

条带卷(Deprecated)

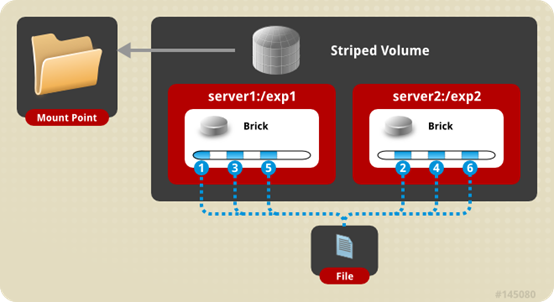

条带卷(Striped Glusterfs Volume),特点如下:

  1. 每个文件被分片成等同于brick数量的chunks,然后以round robin的方式将每个chunk存储到1个brick,相当于raid0;
  2. 单一超大容量文件可被分片,不受brick server本地文件系统的限制;
  3. 文件分片后,并发粒度是chunks,分布式读写性能较高,但分片随机读写可能会导致硬盘iops较高;
  4. 无冗余,1个server节点故障会导致所有数据丢失。


创建条带卷

1
2
3
4
5
6
# 命令:gluster volume create NEW-VOLNAME [stripe COUNT] [transport [tcp | dma | tcp,rdma]] NEW-BRICK...
# 以上命令在任意server节点操作均可,以glusterfs01节点为例;
# 创建名为”strsipe-volume”的逻辑卷;
# 必须指定卷类型(默认为分布式卷)与对应的条带数量,数量需要与后续使用brick server数量对等;
# “transport tcp”指定集群通信方式
[root@glusterfs01 ~]# gluster volume create stripe-volume stripe 3 transport tcp glusterfs01:/brick1/str_volume glusterfs02:/brick2/str_volume glusterfs03:/brick3/str_volume


启动卷

1
[root@glusterfs01 ~]# gluster volume start stripe-volume


client挂载

1
2
[root@glusterfs-client ~]# mkdir /mnt/stripe
[root@glusterfs-client ~]# mount.glusterfs 172.30.200.51:stripe-volume /mnt/stripe/

查看挂载情况

1
2

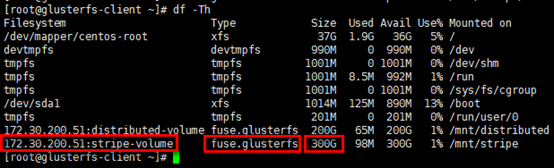

# 已挂载卷的容量是3个brick容量之和
[root@glusterfs-client ~]# df -Th


存储测试

1
2
3
4
5
6
7
8
9
10
# 在client的挂载目录下创建若干文件
[root@glusterfs-client ~]# cd /mnt/stripe/
[root@glusterfs-client stripe]# touch stripe{1..6}.txt

# 向strip1.txt文件写入内容
[root@glusterfs-client stripe]# echo "this is stripe1.txt" >> strip1.txt

# glusterfs01节点

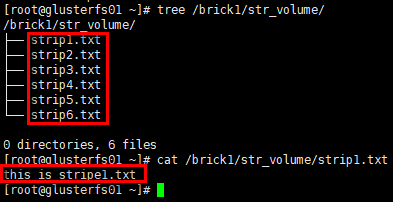

[root@glusterfs01 ~]# tree /brick1/str_volume/
[root@glusterfs01 ~]# cat /brick1/str_volume/strip1.txt


1
2
3

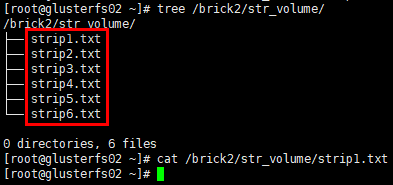

# glusterfs02节点
[root@glusterfs02 ~]# tree /brick2/str_volume/
[root@glusterfs02 ~]# cat /brick2/str_volume/strip1.txt


1
2
3

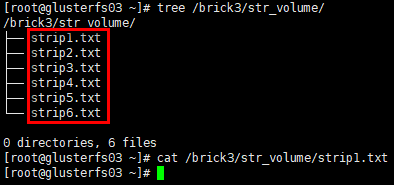

# glusterfs03节点
[root@glusterfs03 ~]# tree /brick3/str_volume/
[root@glusterfs03 ~]# cat /brick3/str_volume/strip1.txt


结论:条带卷将1个文件分片存储在多个brick server,但并无副本。

复制卷

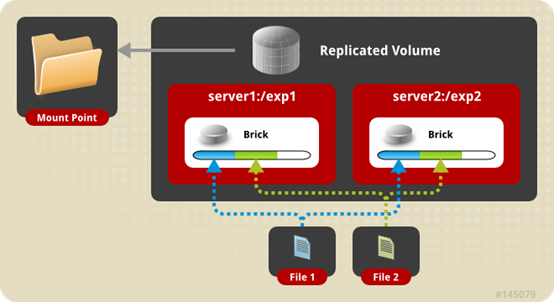

复制卷(Replicated Glusterfs Volume,又称AFR(Auto File Replication)),特点如下:

  1. 每个文件同步复制镜像到多个brick,相当于文件级raid1;
  2. 副本数量通常设置为2或3,设置的副本数量需要是brick数量(至少为2)的倍数(如2台brick server,可设置副本数为2/4/6/…;如3台brick server,可设置副本数为3/6/9/…;依次类推),且每个brick的容量相等;
  3. 读性能提升,写性能下降,因为glusterfs的复制是同步事务操作,即写文件时,先把这个文件锁住,然后同时写两个或多个副本,写完后解锁,操作结束(ceph采用异步写副本,即写到一个主OSD便返回,这个OSD再通过内部网络异步写到其余OSD);
  4. 通常与分布式卷或条带卷组合使用,解决前两者的冗余问题;
  5. 提升数据可靠性,但磁盘利用率低;
  6. 副本数设置为2时,可能会有脑裂(Split-brain)的风险(风险提示,但可配置),主要因在两个副本不一致时,无法仲裁以哪个副本为准,解决方案是加入仲裁或者设置3副本。


创建复制卷

1
2
3
4
5
6
7
# 命令:gluster volume create NEW-VOLNAME [replica COUNT] [transport [tcp | rdma | tcp,rdma]] NEW-BRICK...
# 以上命令在任意server节点操作均可,以glusterfs01节点为例;
# 创建名为”replica-volume”的逻辑卷;
# 必须指定卷类型(默认为分布式卷)与对应的副本数量,数量需要与后续使用brick server数量对等;
# “transport tcp”指定集群通信方式;
# 副本数为2时,有脑裂风险提示,提示采用3副本或仲裁机制,验证环境略过即可
[root@glusterfs01 ~]# gluster volume create replica-volume replica 2 transport tcp glusterfs01:/brick1/repl_volume glusterfs02:/brick2/repl_volume


启动卷

1
2

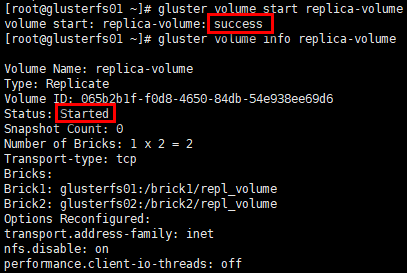

[root@glusterfs01 ~]# gluster volume start replica-volume
[root@glusterfs01 ~]# gluster volume info replica-volume


client挂载

1
2
[root@glusterfs-client ~]# mkdir /mnt/replica
[root@glusterfs-client ~]# mount.glusterfs 172.30.200.51:replica-volume /mnt/replica/

查看挂载情况

1
2

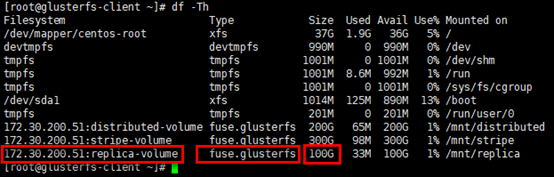

# 已挂载卷的容量是1个brick的容量
[root@glusterfs-client ~]# df -Th


存储测试

1
2
3
4
5
6
7
8
9
# 在client的挂载目录下创建若干文件
[root@glusterfs-client ~]# cd /mnt/replica/
[root@glusterfs-client replica]# touch replica{1..4}.txt

# 向replica1.txt文件写入内容
[root@glusterfs-client replica]# echo "this is replica1.txt" >> replica1.txt
# glusterfs01节点

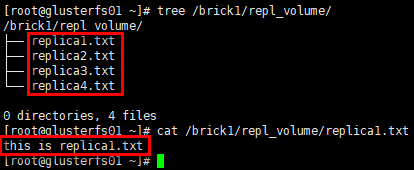

[root@glusterfs01 ~]# tree /brick1/repl_volume/
[root@glusterfs01 ~]# cat /brick1/repl_volume/replica1.txt


1
2
3

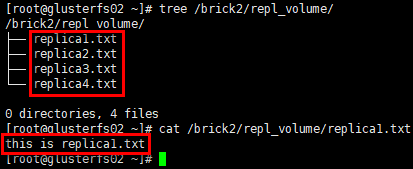

# glusterfs02节点
[root@glusterfs02 ~]# tree /brick2/repl_volume/
[root@glusterfs02 ~]# cat /brick2/repl_volume/replica1.txt


结论:复制卷将1个文件同步镜像到多个brick server,数据有冗余备份。

AFR恢复原理

数据恢复只针对复制卷,AFR数据修复主要涉及三个方面:ENTRY,META,DATA。

记录描述副本状态的称之为ChangeLog,记录在每个副本文件扩展属性里,读入内存后以矩阵形式判断是否需要修复以及要以哪个副本为Source进行修复;初始值以及正常值为0(注:ENTRY和META,DATA分布对应着一个数值)。

以冗余度为2,即含有2个副本A和B的DATA修复为例,write的步骤分解为:

  1. 下发Write操作;
  2. 加锁Lock;
  3. 向A,B副本的ChangeLog分别加1,记录到各副本的扩展属性中;
  4. 对A,B副本进行写操作;
  5. 若副本写成功则ChangeLog减1,若该副本写失败则ChangLog值不变,记录到各个副本的扩展属性中;
  6. 解锁UnLock;
  7. 向上层返回,只要有一个副本写成功就返回成功。

上述操作在AFR中是完整的一个transaction动作,根据两个副本记录的ChangeLog的数值确定了副本的几种状态:

  1. WISE:智慧的,即该副本的ChangeLog中对应的值是0,而另一副本对应的数值大于0;
  2. INNOCENT:无辜的,即两副本的ChangeLog对应的值都是0;
  3. FOOL:愚蠢的,即该副本的ChangeLog对应的值大于是0,而另一副本对应的数值是0;
  4. IGNORANT,忽略的,即该副本的ChangeLog丢失。

恢复分以下场景:

  1. 1个节点changelog状态为WISE,其余节点为FOOL或其他非WISE状态,以WISE节点去恢复其他节点;

  2. 所有节点是IGNORANT状态,手动触发heal,通过命令以UID最小的文件作为source,去恢复大小为0的其他文件;

  3. 多个状态是WISE时,即出现脑裂状态,脑裂的文件通常读不出来,报”Input/Output error”,可查看日志/var/log/glusterfs/glustershd.log。

    脑裂原理及解决方案:[https://docs.gluster.org/en/latest/Administrator%20Guide/Split%20brain%20and%20ways%20to%20deal%20with%20it/](https://docs.gluster.org/en/latest/Administrator Guide/Split brain and ways to deal with it/)

1
2
3
# 通过命令查看副本文件的扩展属性:getfattr -m . -d -e hex [filename]
# “trusted.afr.xxx”部分即扩展属性,值是24bit,分3部分,依次标识DATA ,META, ENTRY 3者的changelog
[root@glusterfs01 ~]# getfattr -m . -d -e hex /brick1/repl_volume/replica1.txt


分布式复制卷

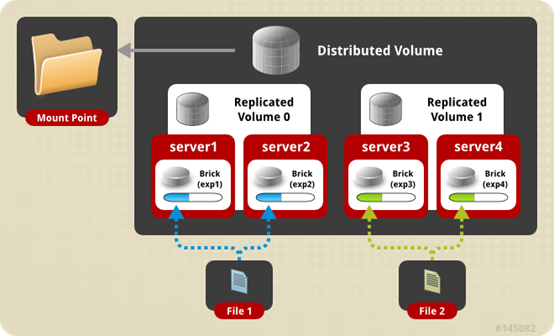

分布式复制卷(Distributed Replicated Glusterfs Volume),是分布式卷与复制卷的组合,兼具两者的功能,特点如下:

  1. 若干brick组成1个复制卷,另外若干brick组成其他复制卷;单个文件在复制卷内数据保持副本,不同文件在不同复制卷之间进行哈希分布;即分布式卷跨复制卷集(replicated sets );
  2. brick server数量是副本数量的倍数,且>=2倍,即最少需要4台brick server,同时组建复制卷集的brick容量相等。


创建分布式复制卷

1
2
3
4
5
6
7
8
9
10
11
12
# 命令:gluster volume create NEW-VOLNAME [replica COUNT] [transport [tcp | rdma | tcp,rdma]] NEW-BRICK...
# 以上命令在任意server节点操作均可,以glusterfs01节点为例;
# 创建名为”distributed-replica-volume”的逻辑卷;
# 必须指定卷类型(默认为分布式卷)与对应的副本数量,brick server数量是副本数量的倍数,且>=2倍;
# 不需要指出分布式卷类型,只要副本数量与brick server数量不等且符合倍数关系,即是分布式复制卷;
# “transport tcp”指定集群通信方式;
# 副本数为2时,有脑裂风险提示,提示采用3副本或仲裁机制,验证环境略过即可
[root@glusterfs01 ~]# gluster volume create distributed-replica-volume replica 2 transport tcp \
glusterfs01:/brick1/dis_repl_volume \
glusterfs02:/brick2/dis_repl_volume \
glusterfs03:/brick3/dis_repl_volume \
glusterfs04:/brick4/dis_repl_volume


启动卷

1
2
3
4

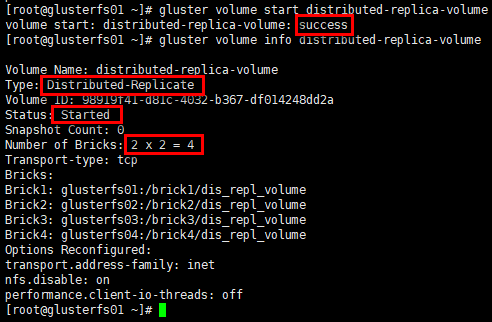

# 卷类型:分布式复制卷
# “Number of Bricks”:2副本,2个副本集(replicated sets ),4个brick server
[root@glusterfs01 ~]# gluster volume start distributed-replica-volume
[root@glusterfs01 ~]# gluster volume info distributed-replica-volume


client挂载

1
2
[root@glusterfs-client ~]# mkdir /mnt/distributed-replica
[root@glusterfs-client ~]# mount.glusterfs 172.30.200.51:distributed-replica-volume /mnt/distributed-replica/

查看挂载情况

1
2

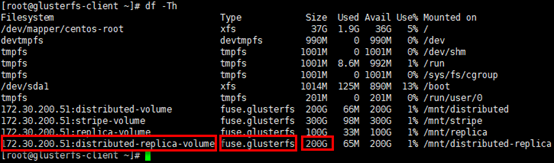

# 已挂载卷的容量是2个副本集(replicated sets )容量之和
[root@glusterfs-client ~]# df -Th


存储测试

1
2
3
4
5
6
7
8
9
# 在client的挂载目录下创建若干文件
[root@glusterfs-client ~]# cd /mnt/distributed-replica/
[root@glusterfs-client distributed-replica]# touch distributed-replica{1..6}.txt

# 向distributed-replica1.txt文件写入内容
[root@glusterfs-client distributed-replica]# echo "this is distributed-replica1.txt" >> distributed-replica1.txt

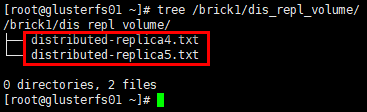

# glusterfs01节点
[root@glusterfs01 ~]# tree /brick1/dis_repl_volume/


1
2
# glusterfs02节点

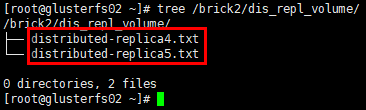

[root@glusterfs02 ~]# tree /brick2/dis_repl_volume/


1
2
3

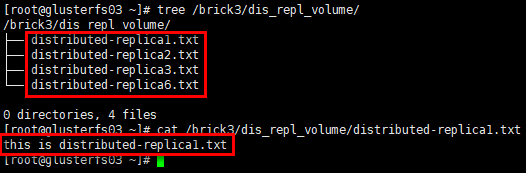

# glusterfs03节点
[root@glusterfs03 ~]# tree /brick3/dis_repl_volume/
[root@glusterfs03 ~]# cat /brick3/dis_repl_volume/distributed-replica1.txt


1
2
3

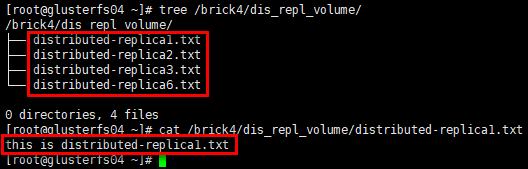

# glusterfs04节点
[root@glusterfs04 ~]# tree /brick4/dis_repl_volume/
[root@glusterfs04 ~]# cat /brick4/dis_repl_volume/distributed-replica1.txt


结论:分布式复制卷将数据文件分布在多个复制集(replicated sets )中,每个复制集中数据有镜像冗余。

分布式条带卷(Deprecated)

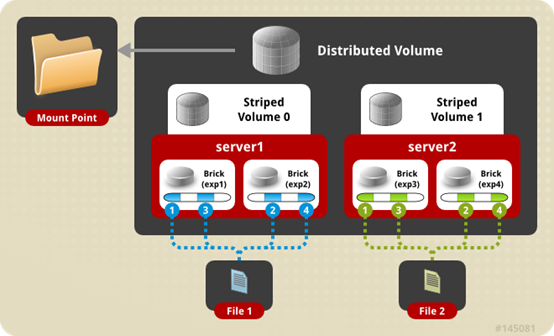

分布式条带卷(Distributed Striped Glusterfs Volume),是分布式卷与条带卷的组合,兼具两者的功能,特点如下:

  1. 若干brick组成1个条带卷,另外若干brick组成其他条带卷;单个文件在条带卷内数据以条带的形式存储,不同文件在不同条带卷之间进行哈希分布;即分布式卷跨条带卷;
  2. brick server数量是条带数的倍数,且>=2倍,即最少需要4台brick server。


创建分布式条带卷

1
2
3
4
5
6
7
8
9
10
11
# 命令:gluster volume create NEW-VOLNAME [stripe COUNT] [transport [tcp | rdma | tcp,rdma]] NEW-BRICK...
# 以上命令在任意server节点操作均可,以glusterfs01节点为例;
# 创建名为”distributed-stripe-volume”的逻辑卷;
# 必须指定卷类型(默认为分布式卷)与对应的条带数,brick server数量是条带数量的倍数,且>=2倍;
# 不需要指出分布式卷类型,只要条带数量与brick server数量不等且符合倍数关系,即是分布式复制卷;
# “transport tcp”指定集群通信方式;
[root@glusterfs01 ~]# gluster volume create distributed-stripe-volume stripe 2 transport tcp \
glusterfs01:/brick1/dis_str_volume \
glusterfs02:/brick2/dis_str_volume \
glusterfs03:/brick3/dis_str_volume \
glusterfs04:/brick4/dis_str_volume


启动卷

1
2
3
4

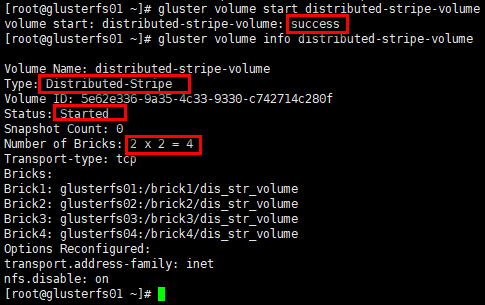

# 卷类型:分布式条带卷
# “Number of Bricks”:2分布集,2条带集(replicated sets ),4个brick server
[root@glusterfs01 ~]# gluster volume start distributed-stripe-volume
[root@glusterfs01 ~]# gluster volume info distributed-stripe-volume


client挂载

1
2
[root@glusterfs-client ~]# mkdir /mnt/distributed-stripe
[root@glusterfs-client ~]# mount.glusterfs 172.30.200.51:distributed-stripe-volume /mnt/distributed-stripe/

查看挂载情况

1
2

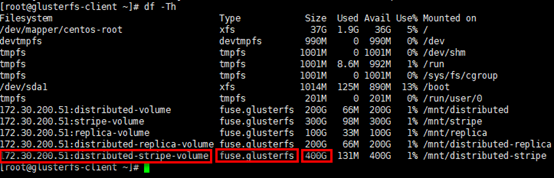

# 已挂载卷的容量是4个brick容量之和
[root@glusterfs-client ~]# df -Th


存储测试

1
2
3
4
5
6
7
8
9
# 在client的挂载目录下创建若干文件
[root@glusterfs-client ~]# cd /mnt/distributed-stripe/
[root@glusterfs-client distributed-stripe]# touch distributed-stripe{1..6}.txt

# 向distributed-stripe1.txt文件写入内容
[root@glusterfs-client distributed-stripe]# echo "this is distributed-stripe1.txt" >> distributed-stripe1.txt

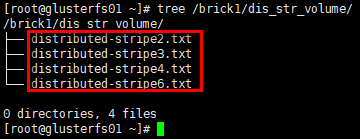

# glusterfs01节点
[root@glusterfs01 ~]# tree /brick1/dis_str_volume/


1
2
# glusterfs02节点
[root@glusterfs02 ~]# tree /brick2/dis_str_volume/


1
2
3
# glusterfs03节点

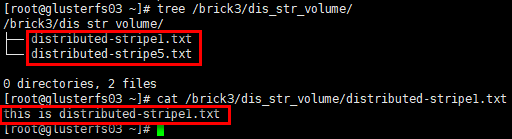

[root@glusterfs03 ~]# tree /brick3/dis_str_volume/
[root@glusterfs03 ~]# cat /brick3/dis_str_volume/distributed-stripe1.txt


1
2
3
# glusterfs04节点
[root@glusterfs04 ~]# tree /brick4/dis_str_volume/
[root@glusterfs04 ~]# cat /brick4/dis_str_volume/distributed-stripe1.txt


结论:分布式条带卷将数据文件分布在多个条带集中,每个条带集中数据再以条带的形式存储在对应条带集中的全部brick上,数据无冗余备份。

条带镜像卷(Deprecated)

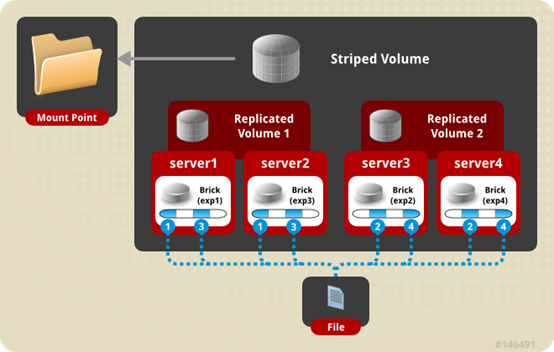

条带复制卷(STRIPE REPLICA Volume),是条带与复制卷的组合,兼具两者的功能,特点如下:

  1. 若干brick组成1个复制卷,另外若干brick组成其他复制卷;单个文件以条带的形式存储在2个或多个复制集(replicated sets ),复制集内文件分片以副本的形式保存;相当于文件级raid01;
  2. brick server数量是副本数的倍数,且>=2倍,即最少需要4台brick server。

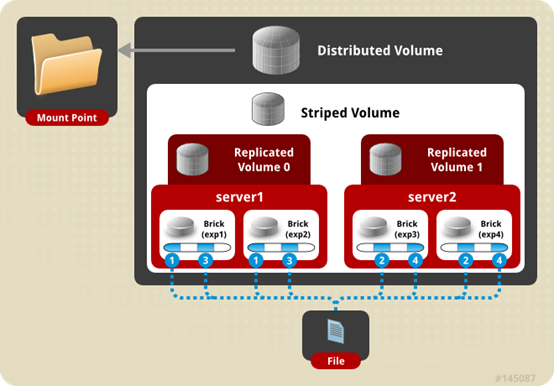

分布式条带镜像卷(Deprecated)

分布式条带复制卷(DISTRIBUTE STRIPE REPLICA VOLUME),是分布式卷,条带与复制卷的组合,兼具三者的功能,特点如下:

  1. 多个文件哈希分布到到多个条带集中,单个文件在条带集中以条带的形式存储在2个或多个复制集(replicated sets ),复制集内文件分片以副本的形式保存;
  2. brick server数量是副本数的倍数,且>=2倍,即最少需要4台brick server。


纠删卷

纠删卷(Dispersed Volumes)是v3.6版本后发布的一种volume特点如下:

  1. 基于纠删码(erasure codes, EC)实现,类似于raid5/6(取决于redundancy等级);
  2. 通过配置redundancy(冗余)级别提高可靠性,在保证较高的可靠性同时,可以提升物理存储空间的利用率;
  3. 文件被分割成大小相同的chunk(块),每个chunk又被分割成fragment,冗余信息的fragment随之生成,且同一个fragment只会保存一个brick上;
  4. redundancy均匀分布存储在所有的brick,逻辑卷的有效空间是 = * (#bricks - redundancy);
  5. 在数据恢复时,只要(#bricks - redundancy)个fragment(数据或冗余信息)可用,就能正常恢复数据;
  6. 卷中所有brick容量需要相同,否则最小的brick满容量时,数据无法写入;
  7. 实际部署时,redundancy < #bricks / 2 (or equivalently, redundancy * 2 < #bricks),即brick至少是3个;redundancy设置为0时,DispersedVolume等同于分布式卷;若redundancy设置为brick/2时,DispersedVolume等同于复制卷。

创建纠删卷

1
2
3
4
5
6
7
8
9
10
11
# 命令:gluster volume create [disperse [<count>]] [redundancy <count>] [transport tcp | rdma | tcp,rdma]
# 以上命令在任意server节点操作均可,以glusterfs01节点为例;
# 创建名为”disperse-volume”的逻辑卷;
# 必须指定卷类型(默认为分布式卷)与对应的brick server数量;
# 冗余等级”redundancy”需要根据使用brick server数量(“disperse conunt”),并结合期望的冗余度数综合考量;
# 也可不设置冗余等级”redundancy”,系统会根据brick server数量(“disperse conunt”)自动计算最优值,确认即可;如disperse conunt=3,则redundancy=1(无“warning message”);disperse conunt=6,则redundancy=2(有“warning message”);但disperse conunt=4,则无最优值,此时使用默认redundancy=1(有“warning message”);
# “transport tcp”指定集群通信方式,默认即tcp;
[root@glusterfs01 ~]# gluster volume create disperse-volume disperse 3 transport tcp \
glusterfs01:/brick1/disperse_volume \
glusterfs02:/brick2/disperse_volume \
glusterfs03:/brick3/disperse_volume

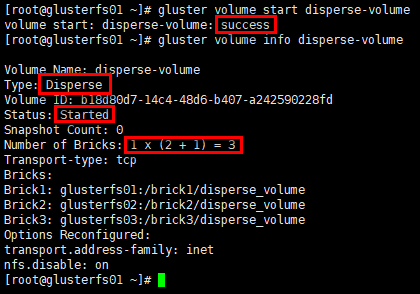

启动卷

1
2
3
4
# 卷类型:disperse卷
# “Number of Bricks”:rudundancy=1,3个brick server
[root@glusterfs01 ~]# gluster volume start disperse-volume
[root@glusterfs01 ~]# gluster volume info disperse-volume


client挂载

1
2
[root@glusterfs-client ~]# mkdir /mnt/disperse
[root@glusterfs-client ~]# mount.glusterfs 172.30.200.51:disperse-volume /mnt/disperse/

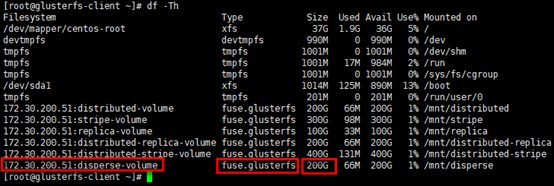

查看挂载情况

1
2
# 已挂载卷的容量是2个brick容量之和,<usable size> = <brick size> * (#bricks - redundancy)
[root@glusterfs-client ~]# df -Th


存储测试

1
2
3
4
5
6
7
8
9
10
# 在client的挂载目录下创建若干文件
[root@glusterfs-client ~]# cd /mnt/disperse/
[root@glusterfs-client disperse]# touch disperse{1..4}.txt

# 向distributed-replica1.txt文件写入内容
[root@glusterfs-client disperse]# echo "this is disperse1.txt" >> disperse1.txt

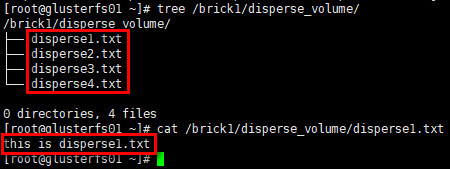

# glusterfs01节点
[root@glusterfs01 ~]# tree /brick1/disperse_volume/
[root@glusterfs01 ~]# cat /brick1/disperse_volume/disperse1.txt


1
2
3

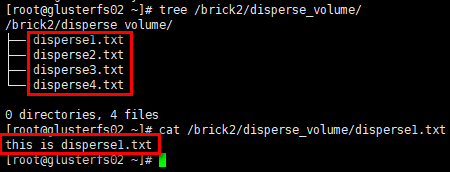

# glusterfs02节点
[root@glusterfs02 ~]# tree /brick2/disperse_volume/
[root@glusterfs02 ~]# cat /brick2/disperse_volume/disperse1.txt


1
2
3

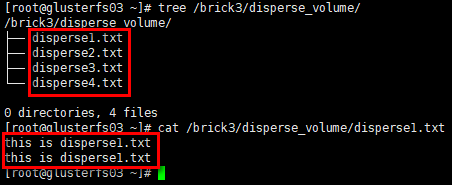

# glusterfs03节点
[root@glusterfs03 ~]# tree /brick3/disperse_volume/
[root@glusterfs03 ~]# cat /brick3/disperse_volume/disperse1.txt


结论:纠删卷将数据文件(含冗余信息)分布在多个brick中,数据有冗余。

分布式纠删卷

分布式纠删卷(Distributed Dispersed Volumes)等效于分布式复制卷,但使用的是纠删子卷,而非复制子卷。

Glusterfs管理

均衡卷

1
2
3
4
5
6
7
8
9
10
11
# 不迁移数据
gluster volume VOLNAME rebalance [fix-layout start | start | startforce | status | stop]

# 修复卷(只针对复制卷)
gluster volume heal REPLICATE-VOLNAME/DISPERSE-VOLNAME #只修复有问题的文件
gluster volume heal REPLICATE-VOLNAME/DISPERSE-VOLNAME full #修复所有文件
gluster volume heal REPLICATE-VOLNAME/DISPERSE-VOLNAME info #查看自愈详情
gluster volume heal REPLICATE-VOLNAME/DISPERSE-VOLNAME info healed|heal-failed|split-brain

# 设置卷
gluster volume set options

删除卷

1
2
3
4
5
# 删除卷操作,必须先停用卷;
# 最后可清空brick server节点对应目录下的内容
gluster volume stop distributed-volume
gluster volume delete distributed-volume
rm -f /brick1/dis_volume

brick管理

1
2
3
4
5
6
7
8
# 添加brick
gluster volume add-brick VOLNAME NEW-BRICK

# 移除brick
gluster volume remove-brick VOLNAME BRICK [start | status | commit]

# 替换brick
gluster volume replace-brick VOLNAME BRICKNEW-BRICK [start | pause | sbortstatus | commit]

日志

相关日志,在/var/log/glusterfs/目录下,可根据需要查看;

如/var/log/glusterfs/brick/下是各brick创建的日志;

如/var/log/glusterfs/cmd_history.log是命令执行记录日志;

如/var/log/glusterfs/glusterd.log是glusterd守护进程日志。

-------------本文结束感谢您的阅读-------------

本文标题:GlusterFS分布式存储集群之使用

文章作者:豌豆多多

发布时间:2019年11月05日 - 11:11

最后更新:2020年08月04日 - 14:08

原始链接:https://wandouduoduo.github.io/articles/35de9bb2.html

许可协议: 署名-非商业性使用-禁止演绎 4.0 国际 转载请保留原文链接及作者。

原创技术分享,您的支持将鼓励我继续创作
